Status Bar

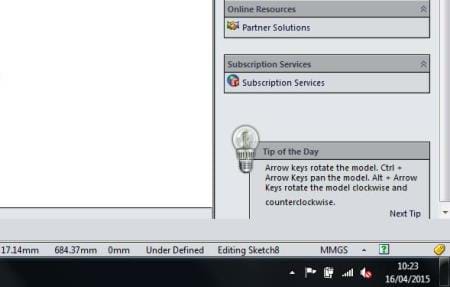

The status bar at the bottom of the SOLIDWORKS window provides information related to the function you are currently performing.

To display or hide the status bar:

Click View > Status Bar.

Typical information provided in the status bar:

• A brief description as you move the pointer over a tool or click a menu item
• A rebuild icon , if you make changes to a sketch or part that requires the rebuild of the part
• Sketch status and pointer coordinates, when you are working in a sketch
• Commonly used measurements for selected entities, such as the length of an edge
• A message to indicate that you are editing a part while in an assembly
• An icon for accessing the Reload dialog box when you are using collaboration options
• A message to indicate that you have selected to suspend automatic rebuilds
• Unit System , which shows the unit system for the active document in the status bar and lets you change or customize the unit system
• An icon to enable you to turn Quick Tips on or off
• An icon to display or hide the Tags text box, used to add keywords to features and parts to aid in searching

?

By Jon Weston-Stanley

View the Video here
